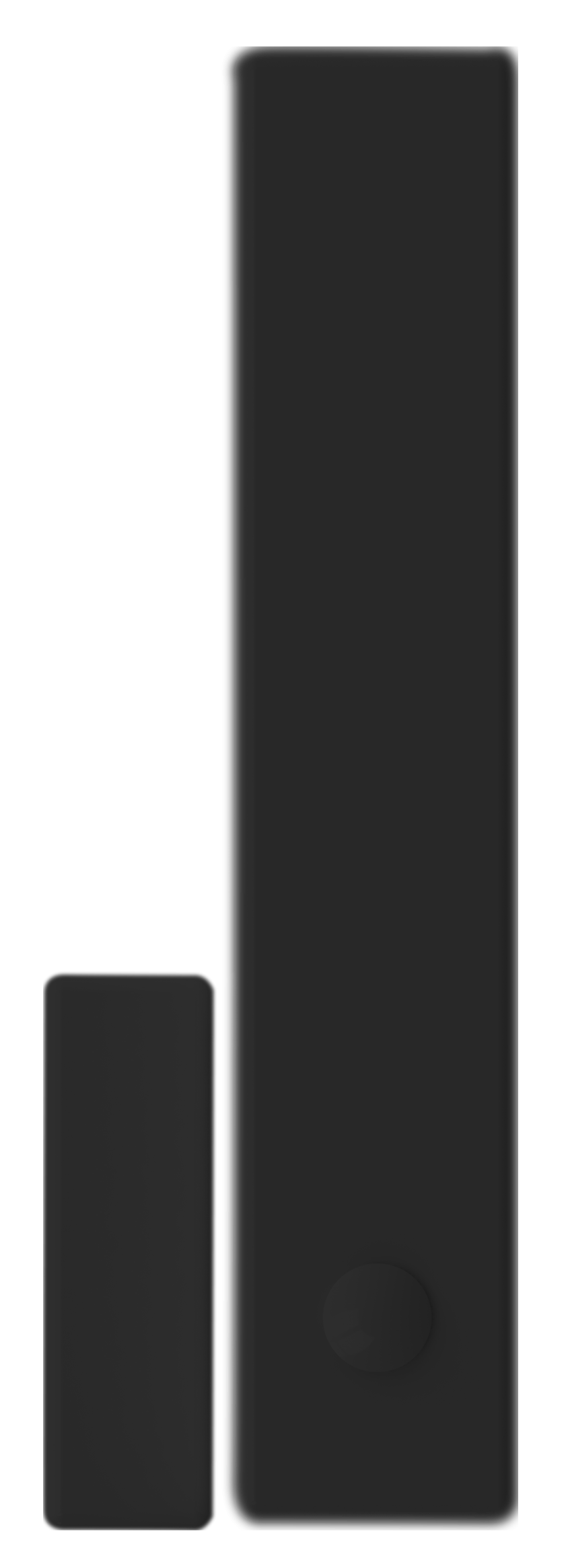

Combined shock and magnetic contact
Sleek and stylish design
One push to learn
Adjustable sensitivity
Signal Strength Indicator on the Device
868MHz transceiver FM technology
External device Input
External tamper input
Available in white, brown or anthracite grey
This product is specifically designed to be placed in positions where it is necessary for a shock sensor alone or shock sensor and magnetic contact to be present, such as walls, ceilings, door and window frames; two sensors in one.
The sensors can both be learned separately to the panel allowing separate shock and magnetic contact transmissions of alarm signals to be sent to the panel. They can also be learned individually, if for some reason either the shock or the magnetic contact is not required.
One of the key advantages of implementing of the SSI technology is to allow the installer to view the wireless transmission signal strength on both the control panel and wireless devices in real time.
Each wireless device on the Enforcer system, including movement detectors is a transmitter and a receiver. The wireless technology used on the Enforcer system holds a significant advantage over one way and some two way wireless products currently available on the market.
2mm polished finish, reduces electrostatic interference.
Assigning wireless devices to the system is made simple and quick by the One-Push-To-Learn feature.
1. Choose an input to learn the device
2. Remove the plastic insulator between the battery and positive contact and press LEARN button
3. Input learnt
Quick, Simple and Efficient!
Modernise your product offerings with the brand-new anthracite grey plastics. Listening to your feedback, we’re really pleased to add the new plastic kit to the range; matching the colour of door and window frames used in modern new builds. Now, you can choose from white, brown and anthracite grey to perfectly complement your customer properties.
Please note that the dual functionality (magnetic contact AND shock sensor) is only compatible with Enforcer V9.13 (Week code 1914) and above and the EURO-ZEM32-WE V2.36 (Week Code 2414) and above.
Should you wish to install this device on systems that do not meet this version requirement, then only the shock sensor aspect of the device can be used.
Magnetic contact |
Yes |
Shock sensor |
Yes |
Tamper protection |
Front and rear |
LED sensor test |
Signal, Battery, Alarm, Tamper |
Terminal for N/C input and reed switch |
Yes |
Magnet included |
Yes |
Tamper input |
Yes |
Signal Strength Indicators (SSI) |
Yes |
Instant two way device control (ITDC) |
Yes |
Pyronix high security two way wireless data encryption protocol (TDE) |
Yes |
Pyronix intelligent jamming detection |
Yes |
Programmable wireless supervision time |
Yes |
868MHz transceiver FM technology |
Yes |
One push to learn |
Yes |
Tranmission method |
Fully encrypted rolling code |
Transmission range |
300m in open space |
Storage temperature |
-20C to 50C |
Certified operating temperature |
-10C to 40C |
Nominal operating temperature |
-10C to 50C |
Physical dimensions (H x W x D) |
30 x 130 x 35mm | Magnet: 17 x 56 x 12.7mm |
Battery type |
3.0V CR123A lithium battery |
Battery life |
up to 2 years |
Threshold |
2.5V +/- 5% at 25C |
Security Grade |
Grade 2 |
Environmental class |
II |
EN Certificate |
EN50131-2-6:2008 | EN50131-5-3:2005+A1:2008 | PD6662:2017 |
Certification type |
Self certified |
Electrical conformity |
CE |
Warranty |
2 years |
