Indoor PIR with 10m detection range
Volumetric coverage 90°
56 zones and 5 planes
Small inconspicuous design
Digi-logic Technology
Auto Temperature Compensation
Pet Immune up to 10kg
Sealed optics
ABS plastics
Security Grade 2, Environmental class II

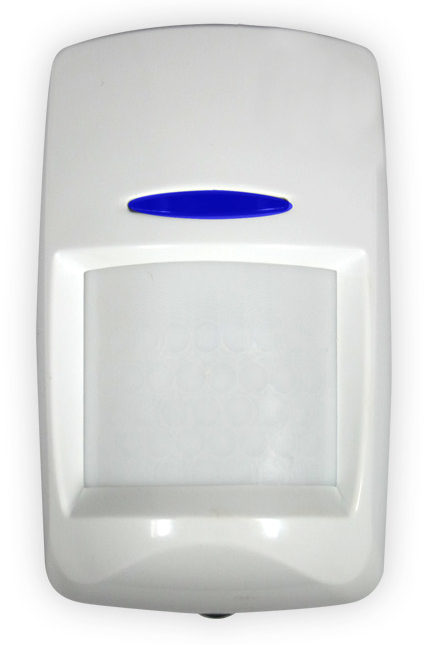

The COLT10DL is a compact pet immune security detector ideal for residential applications. Its small unobtrusive style will allow it to fit inconspicuously in the corner of your room while giving you great protection.The detectors intelligent PI (Pet Immune) technology analyses the difference between an intruder and a pet, with pet immunity up to 10kg.Digi Logic is a newly developed digital type of signal processing where the signal rise time is digitally analysed from its normal quiescent state, comparing the rise and fall times of the PIR signal. The detector can differentiate between slow meandering signals which are received through slow moving air currents or pets, and fast rising signals which are received through true intruder movement.
When the product is used in a hot environment this technology automatically adjusts the detectors sensitivity allowing it to maintain its range even when the background room temperature is almost equal to the external body temperature of 32c. Adjustable sensitivity settings for installations in a any environment.
Depending on the environment condition, the detector will automatically adjust the sensitivity.
3mm polished finish, reduces electrostatic interference on the PIR sensor.
Protects from possible infestation from insects, shields air movement in front of the pyro-electric sensor and protects against adverse reflections from inside the detector housing.
EN50131-1:2006+A1:2009 | EN50131-2-2:2008 | PD6662:2010
Digi logic technology |
Yes |
Set sensitivity |
PC1, PC2 & pet |
Maximum range |
10m |
Volumetric coverage |
Yes |
Animal immunity |
10kg |
Detection speed |
0.3 - 3.0 m/s |
Coverage angle |
90° |
Detection zones |
56 |
Detection planes |
5 |
Detection method |
Low noise Dual Element Pyroelectric sensor |
Wall mounted |
Additional bracket available (KXBRACKET) |
Ceiling mounted |
Bracket available (KXBRACKET) |
Optimum coverage height |
2m - 2.4m standard, 2.4m PI |
Certified mounting height |
2.4m |
Storage temperature |
-40°C to 80°C |
Certified operating temperature |
-10°C to 40°C |
Nominal operating temperature |
-10°C to 40°C |
Physical dimensions (H x W x D) |
82 x 50 x 41mm |
Weight |
58g without bracket |
Operating voltage |
9 - 16V DC |
Quiescent current consumption |
15mA at 12V |
Relay outputs |
SELV limits, 60Vdc, 50mA (42.4VAC peak) |
Tamper switch |
12V 50mA |
Security Grade |
Grade 2 |
Environmental class |
II |
EN Certificate |
EN50131-2-2:2008 | EN50131-1:2006+A1:2009 | PD6662:2010 |
Certification type |
Self-certified |
Electrical conformity |
CE |
Warranty |
5 years |
