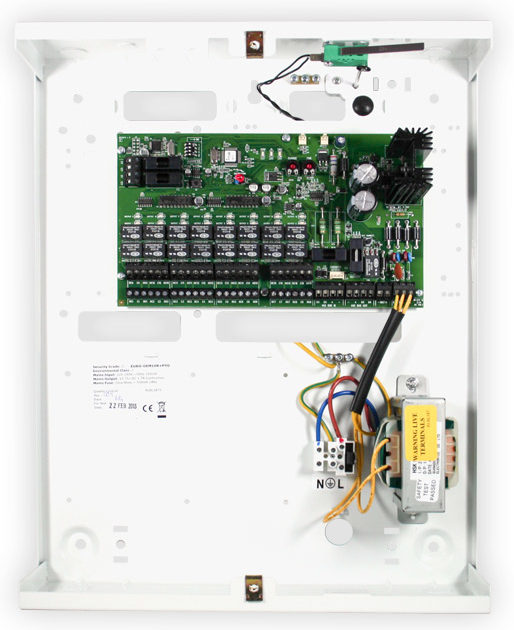

PCX-ROX 16R PSU
Product Features
-
16 relay outputs (NO or NC)
-
LED indications on each output
-
Wired direct to RS-485 BUS
-
Integrated Intelligent PSU
-
Complies with EN50131-1
16 relay outputs (NO or NC)
The 16R+PSU adds an additional 16 relay outputs to your system and features an integrated intelligent power supply.
LED indications on each output
LED adjacent to the relay location will indicate if relay is triggered for test purposes.
Integrated Intelligent PSU
When the Output Module is plugged onto an Intelligent Power Supply, all connections are automatically made to draw current from the power supply and to use the system diagnostic capabilities to control the power supply.
Control Panels
Input and output expanders technical characteristics
Metal housing |
Yes |
Tamper protection |
Yes |
Inputs & outputs
Relay outputs |
16 |
Environmental and operating features
Certified operating temperature |
-10C to +50C |
Nominal operating temperature |
-10C to +50C |
Physical dimensions (H x W x D) |
390 x 305 x 100mm |
Weight |
4.8kg inc battery |
Electrical & battery
Intergrated power supply |
2.5A |
Battery capacity |
700mA (8A to 17A) |
Battery supply protection |
Reverse polarity protected |
Battery low voltage protection |
10.5v low voltage cut off |
Internal battery charger |
800mA Continuous, 13.68V nominal (fold-back current limited) |
Recharge time |
<24 hours |
Mains supply |
230v (220-240v) AC Max 250mA |
Operating voltage |
11-15v DC |
Current limit |
400mA |
Certifications and warranty
Security Grade |
Grade 3 |
Environmental class |
II |
Certification type |
IMQ |
Certificate number |
CA12.01432 |
Electrical conformity |
CE |
Warranty |
2 years |
Product Codes & Options
PCX-16R+PSU
FPPCX-16R+PSU
