3 way tamper protection
Polycarbonate housing offers weather proofing and elegant design
Sealed electronics
Low power strobe LED activated on alarm
Low power piezo with high performance 104db audible alarm

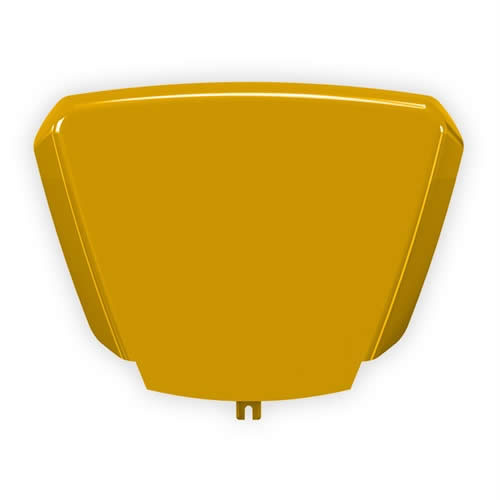

A selection of coloured bases and covers
Grade 2 or 3 options available
Low power strobe LED technology provides a visual indication when the alarm is activated.
Polycarbonate plastics offer a weather resistant housing with an elegant design.
Tamper protection ensures the highest levels of security against accidental or malicious tampering with the system.
Activation from the front, back and power supply cut-off ensures protection from sabotage attempts. In this situation, the siren will activate independently from the control panel.
Low power Piezo with high performance decibels provide a loud audible alarm, ensuring alarm activations are heard and acted upon.
The auto-levelling mechanism uses rotating guide holes and a spirit level to facilitate the simple and easy positioning of the sounder.
Engineer hold-off will disable the sounder when in the Engineers Menu, allowing installers to work on the sounder without the fear of unwanted activations. When the control panel is in Engineers Mode, the Deltabell E external sounder will go into remote engineer hold.
The hinged lid allows for easy access to the electronics.
The availability of a grade 3 option makes the Deltabell E ideal for commercial as well as domestic systems and can be used with all wired and hybrid security panels, as well as the Enforcer V10 panels.
Loudness |
104 dB(A) |
Optional comfort LED |
Yes |
Sound and light indication on alarm |
Yes |
Engineer hold off |
Yes |
Number of Piezos |
1 |
Flashing LED |
Yes |
Comfort LED |
Yes |
Back-lit |
No |
Tamper protection |
Yes |
Strobe duration and frequency |
10mS, 1Hz |
Sounder maximum duration |
15 mins |
SAC (self actuating bell) / SAB (self activating bell) option |
Yes |
Self levelling |
Yes |
Certified operating temperature |
-25C to 60C |
Nominal operating temperature |
-30C to 60C |
Physical dimensions (H x W x D) |
290 x 285 x 50mm |
Battery type |
NiMH 7.2V, 250mAh |
Battery life |
2 - 5 years |
Operating voltage |
9-16V |
Alarm current |
<250mA |
Quiescent current consumption |
<30mA |
Security Grade |
Grade 2 and 3 |
Environmental class |
IV |
EN Certificate |
EN50131-4:2009 |
Certification type |
Self-certified |
Electrical conformity |
CE |
Warranty |
2 Years |
